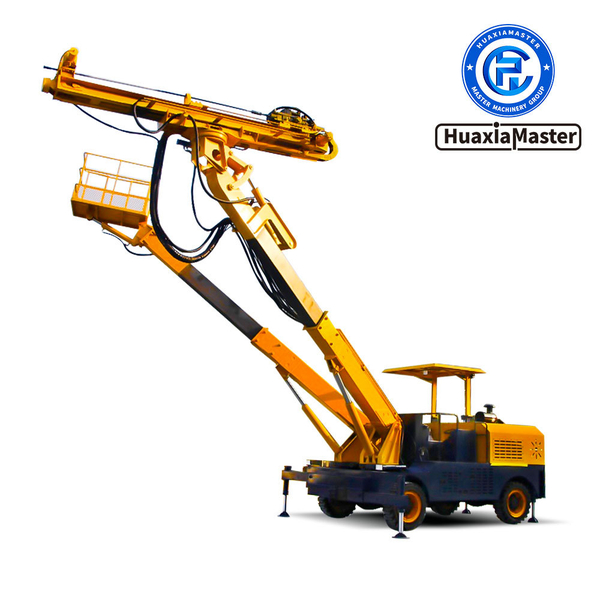

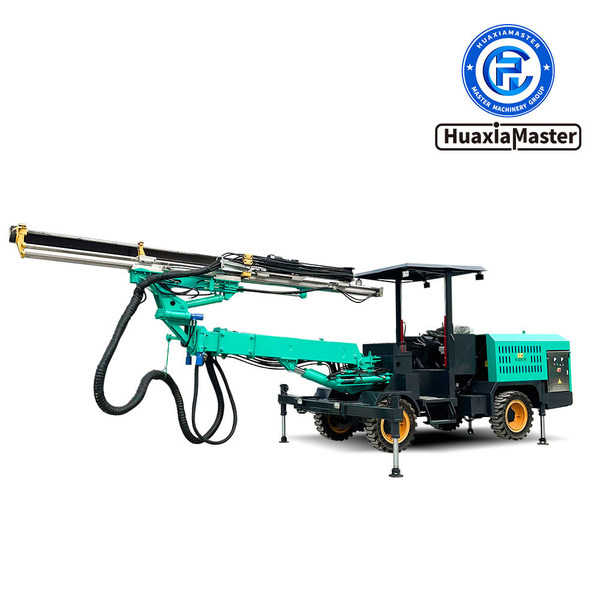

1. Introduction to LSMGZ Series Wheeled Tunnel Anchor Drilling Rig
The wheeled tunnel anchor drilling rig is a tunnel-specific engineering machinery equipment developed based on the construction needs of drilling and anchoring operations in tunnels. It is mainly used to accurately drill holes in the tunnel surrounding rock and assist in the installation of anchor rods, anchor cables and other supporting structures, and cooperate with grouting to enhance rock stability, prevent collapse, and ensure construction safety. The excellent operability combined with powerful power significantly improves construction efficiency and operation accuracy, and has been recognized by the majority of construction units.
2. Features of LSMGZ Series Wheeled Tunnel Anchor Drilling Rig
2.1 Omnidirectional drilling: The drilling rig can rotate 360°, enabling all-round anchoring operations in the tunnel.
2.2 Diversified operating modes: Equipped with high-performance dual hydraulic power heads or automatic impact rock drill heads to achieve diversified operations.
2.3 Configuration diversity: The basket arm can be configured to provide a lifting platform for auxiliary work such as charging, clearing hazards, hanging nets, etc., reducing the tedious work of scaffolding and greatly improving the safety and efficiency of construction.
2.4 Easy to move: It adopts tire-type walking method, which makes it more convenient to move to other places.‌
2.5 Strong adaptability to terrain conditions: Suitable for various soil and rock conditions, showing strong environmental adaptability.
3. Parameters of LSMGZ Series Wheeled Tunnel Anchor Drilling Rig
Drilling rig specifications LSMGZ-8 LSMGZ-8S
Performance parameters Lifting height 8m 8m
Drilling diameter 50~300mm 50~300mm
Anchor diameter 45~89mm 45~89mm
One-time push depth 4m/customizable 4m/customizable
Ways of advancement Hydraulic motor + chain Hydraulic motor + chain
Machine parameters Working arm configuration 1 drill arm 1 drill arm + 1 b
