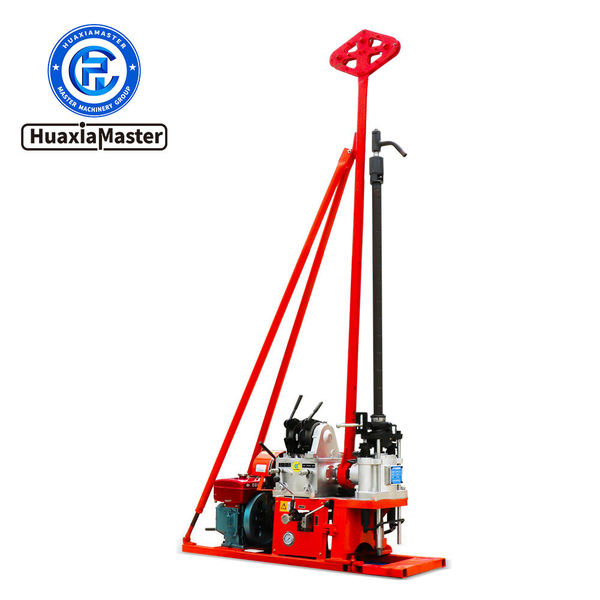

YQZ-30 Hydraulic Light Core Drilling Rig - Изображение #1, Объявление #1749593

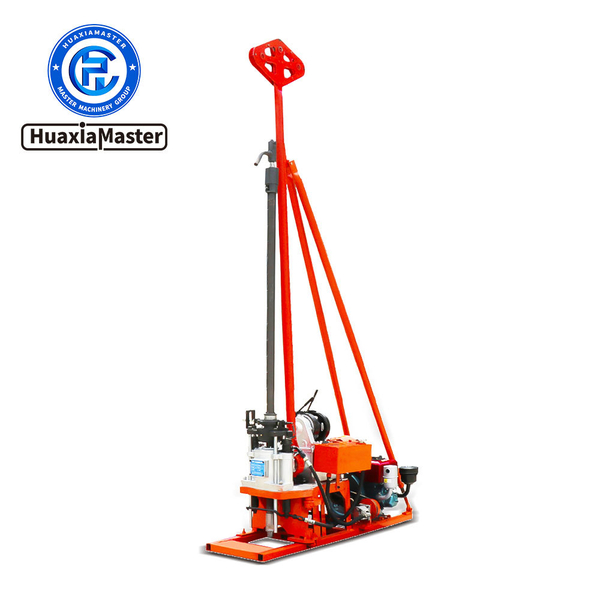

YQZ-30 Hydraulic Light Core Drilling Rig - Изображение #2, Объявление #1749593

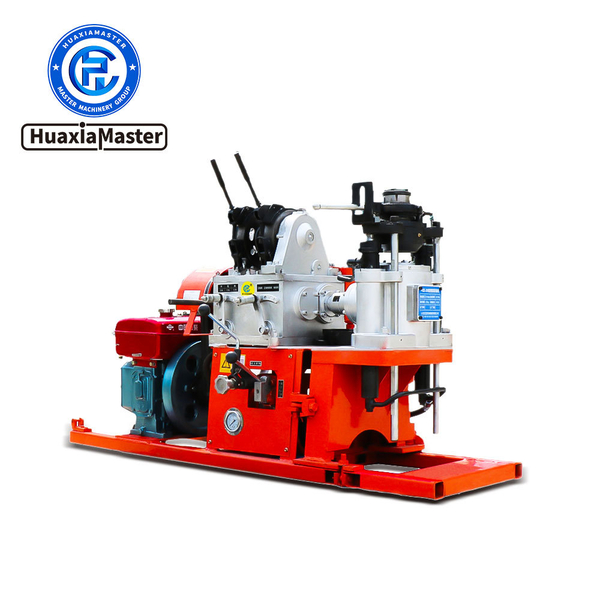

YQZ-30 Hydraulic Light Core Drilling Rig - Изображение #3, Объявление #1749593

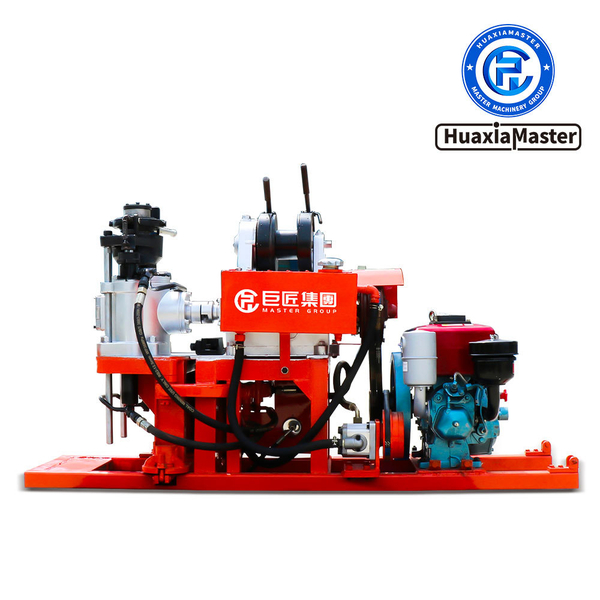

YQZ-30 Hydraulic Light Core Drilling Rig - Изображение #4, Объявление #1749593

YQZ-30 Hydraulic Light Core Drilling Rig
1、Introduction of YQZ-30 Hydraulic Light Core Drill Rig
YQZ-30 hydraulic portable core drilling rig is a small portable crawler type hydraulic drilling machine, which is mainly used for general survey, geophysical exploration, road and construction drilling, shallow oil, natural gas and groundwater drilling, as well as dam grouting, tunnel ventilation and drainage engineering drilling.
2、Features of YQZ-30 Hydraulic Light Core Drilling Rig
2.1 It has oil pressure automatic feeding mechanism and high drilling efficiency.
2.2 The clamping rod can not be used to stop the machine.
2.3 The handle is centralized, easy to operate, safe and feasible.
2.4 It has compact structure and small space occupation.
2.5 The shell of the rotary gear and gearbox of the drilling rig is made of aluminum alloy, which reduces the weight of the body
2.6 It is suitable for complex terrain, easy to decompose and work in hilly area.
3、Parameters of YQZ-30 Hydraulic Light Core Drilling Rig
Model YQZ-30
Borehole dia. 75mm
Sampling depth 30m
Drill pipe 42mm
Vertical shaft speed 136/338/578rpm
Vertical shaft travel 400mm
Vertical shaft lifting force 10kN
Lifting force of winch 0-4kN
Main engine power Diesel engine R180
Drill size 1630*950*1050mm
Weight 375kg
Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.

YQZ-50A Hydraulic Light Core Drilling Rig
1、Introduction of YQZ-50A Hydraulic Light Core Drill Rig
YQZ-50A hydraulic portable drilling rig is a kind of small-scale sampling drilling equipment suitable for plain, mountainous areas and areas with inconvenient transportation and energy resources. It is widely used in railway, water conservancy and other construction projects as well as geological core drilling and small grouting holes in field mountainous areas.
2、Features of YQZ-50A Hydraulic Portable Core Drilling Rig
2.1 Equipped with double cylinder hydraulic feeding syste
